Wholesale 12v 18v 36v 65 w 20w 100w 120w 160w 200w 250w Marine Kit Roll Semi Thin Film Mono Flexible Solar Panel

Product Categories

Wuhan Huanghe Xingyu Electric Appliance Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OEM

Model Number : See details

Place of Origin : Hubei, China

Cell size : 182mmx182mm, 182mm*182mm

Type : Half Cell

Panel Dimensions : 2278 * 1134 * 35mm(89.69*44.65*1.38in)

Panel Efficiency : 21.3%, 21.3%

Application : Solar Panel System

Product name : Sola Panel

Certificate : CE,TUV,CQC, CE,CQC,TUV

Warranty : 25 Years, 30 year

Solar cell : 144 Cells

OEM Order : Acceptable

Color : Customized Color

Packing : Wooden Case

MOQ : 100 watts

Price : $0.19-0.28 / watt

Contact Now

Products Description

Electrical Characteristic
Rated output (Pmp/Wp)	520W	525W	530W	535W	540W	545W	550W	555W	560W
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65	49.90	50.05	50.20
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92	14.00	14.07	14.14
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80	41.96	42.12	42.28
Maximum Power Current(Impp)	12.67	12.79	12.82	12.90	12.97	13.04	13.11	13.18	13.25
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%	21.5%	21.7%	21.9%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

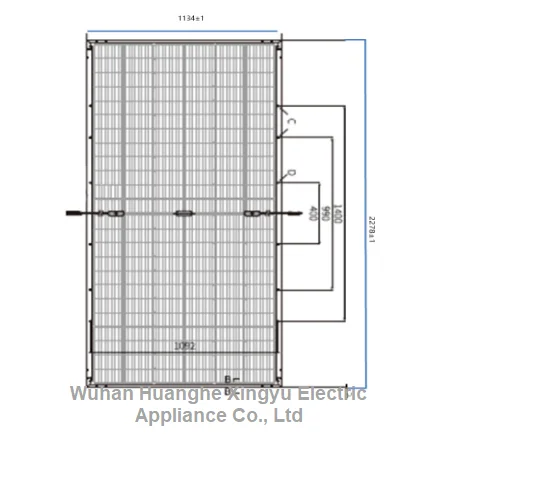

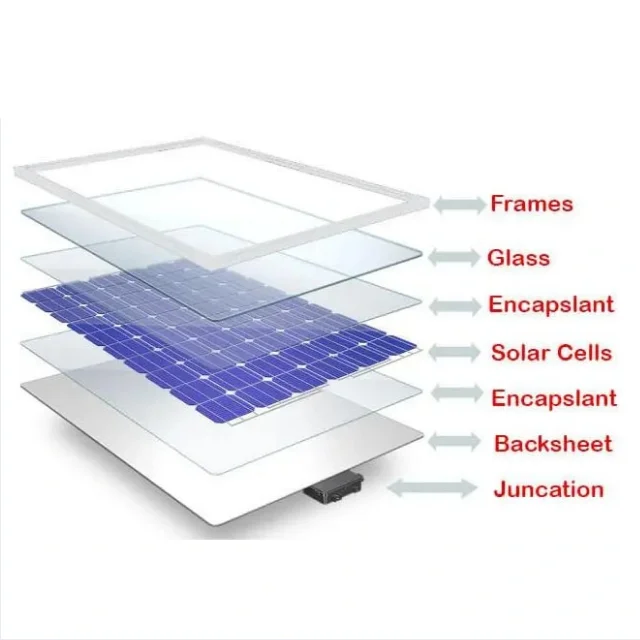

Mechanical Characteristic
No.of Cells			144(6x24)
Weight			32.3kg
Dimension			2256x1133x35mm
Junction Box			IP68,three diodes
Output Cables			4mm2,positive 400mm /negative 200mm ,length can be customized
Glass			Dual glass,3.2mm coated tempered glass
Frame			Anodized aluminum alloy frame

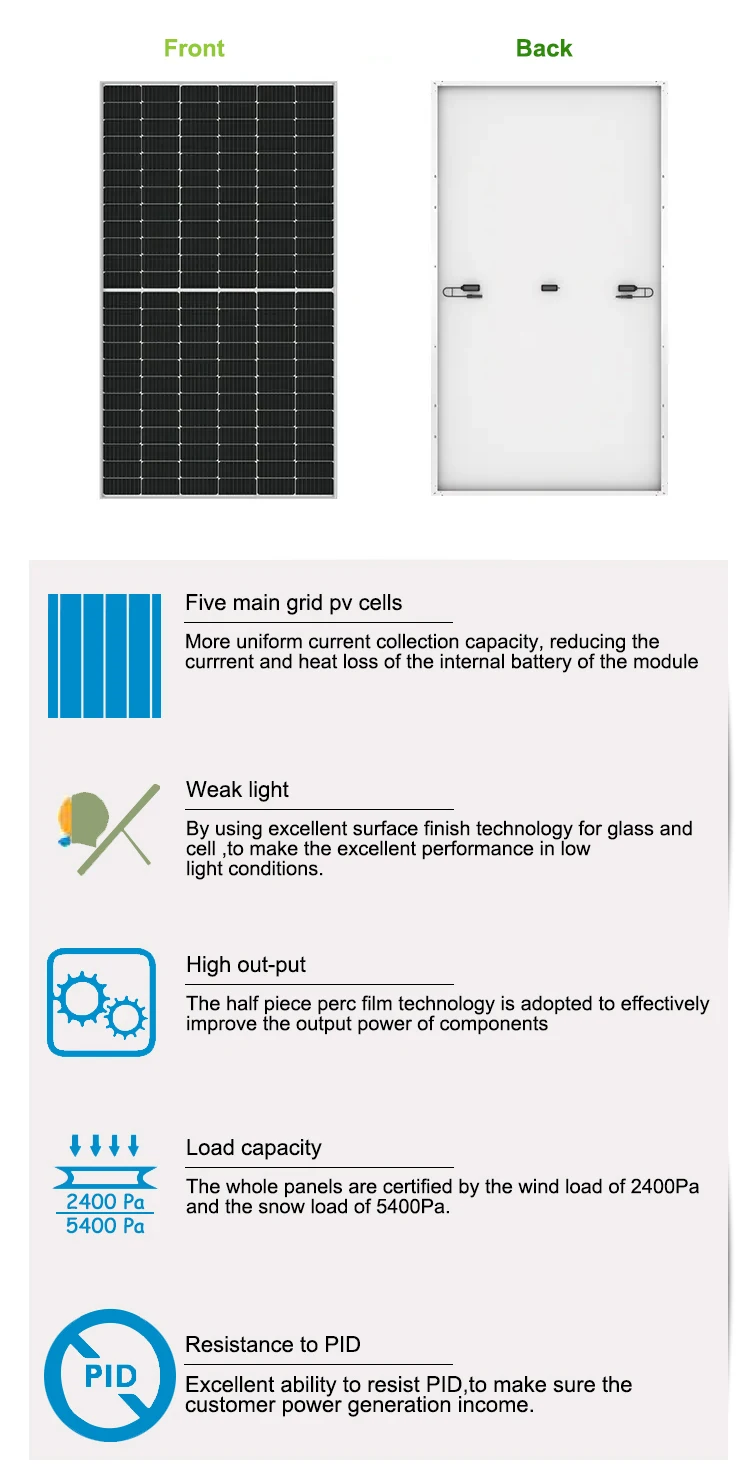

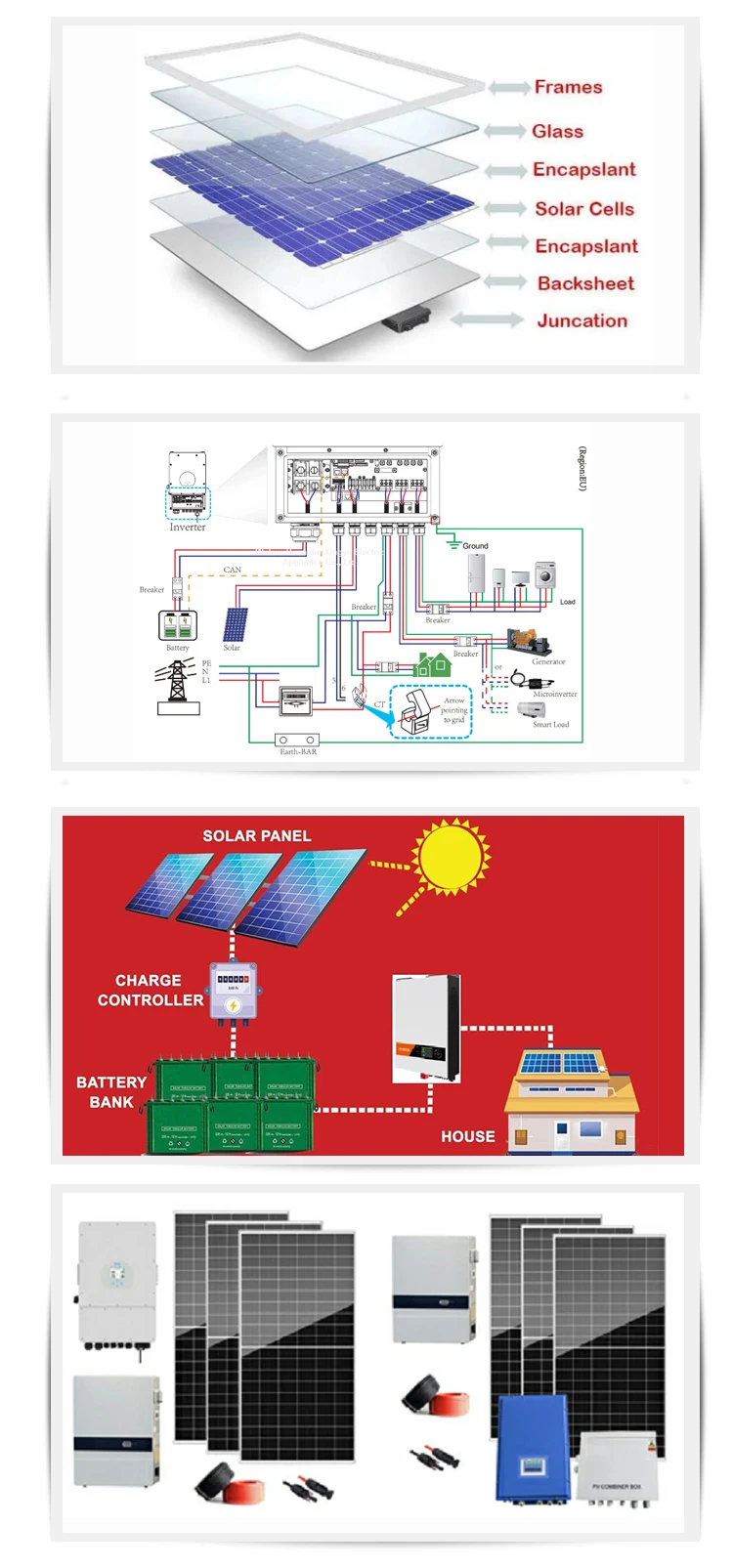

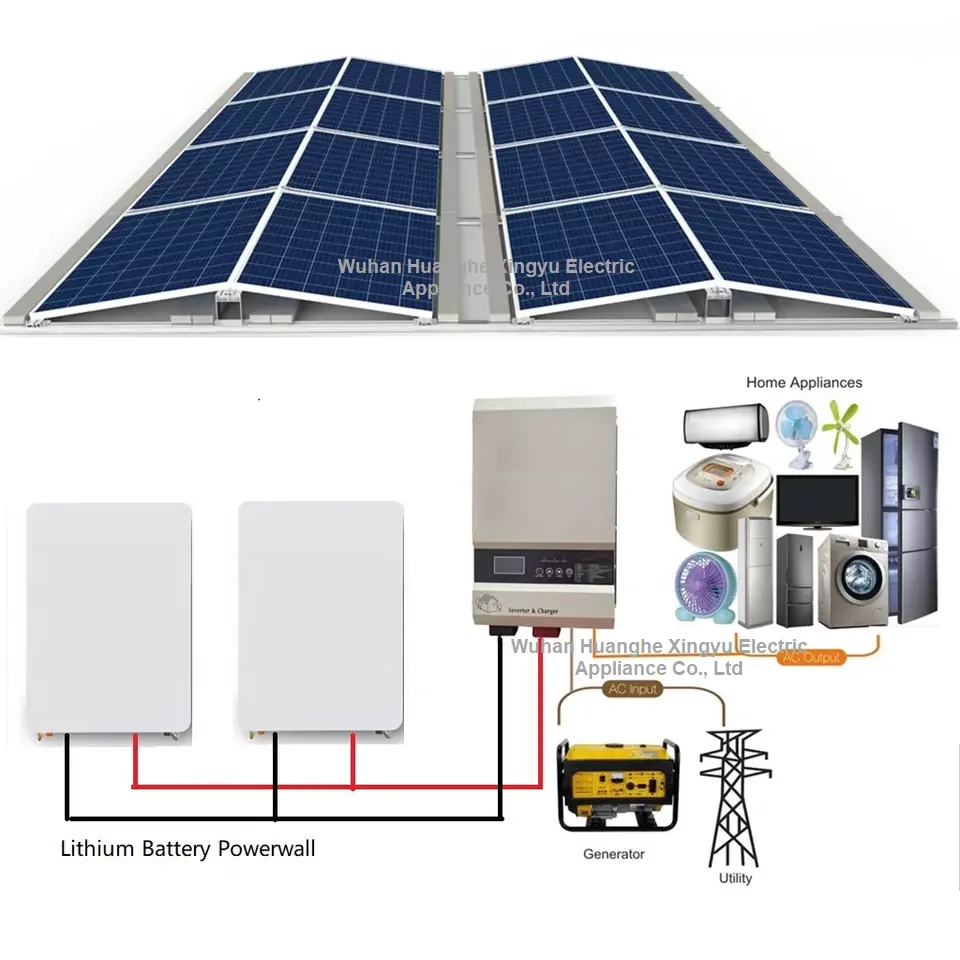

Wholesale 12v 18v 36v 65 w 20w 100w 120w 160w 200w 250w Marine Kit Roll Semi Thin Film Mono Flexible Solar Panel Images
