Smart Solar Panel Half Cell Half Cell Solar Panel Silicon Sun Power 450W 480W 500W 550W Price PV Model Solar Panel

Product Categories

Wuhan Huanghe Xingyu Electric Appliance Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : OEM

Model Number : See details

Place of Origin : Hubei, China

Cell size : 182mmx182mm

Type : Half Cell, Half Cell Solar Panel

Panel Dimensions : 2278 * 1134 * 35mm(89.69*44.65*1.38in)

Panel Efficiency : 21.3%

Solar : Glass

Application : Solar Power System

Product name : Monocrystalline Silicon Solar Panel

OEM Order : Acceptble

Solar cell : Mono 144 Cell/6*24Pcs

Junction Box : IP68 Rated

Keyword : Monocrystalin Solar Panel

Frame : Anodized Aluminium Alloy

Color : Balck

Certificate : CE,CQC,TUV

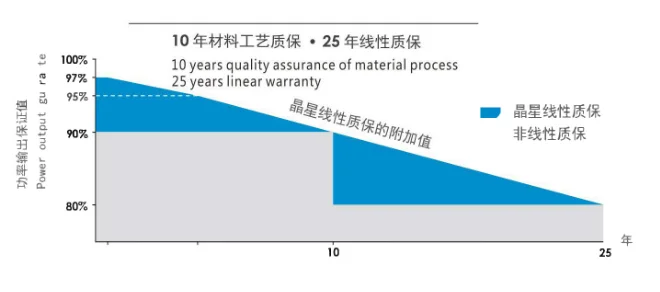

Warranty : 30 year

MOQ : 100 watts

Price : $0.18-0.27 / watt

Contact Now

solar panel title

solar panel show

Product Description

Electrical Characteristic
Rated output (Pmp/Wp)	520W	525W	530W	535W	540W	545W	550W	555W	560W
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65	49.90	50.05	50.20
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92	14.00	14.07	14.14
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80	41.96	42.12	42.28
Maximum Power Current(Impp)	12.67	12.79	12.82	12.90	12.97	13.04	13.11	13.18	13.25
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%	21.5%	21.7%	21.9%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
Mechanical Characteristic
No.of Cells		144(6x24)
Weight		32.3kg

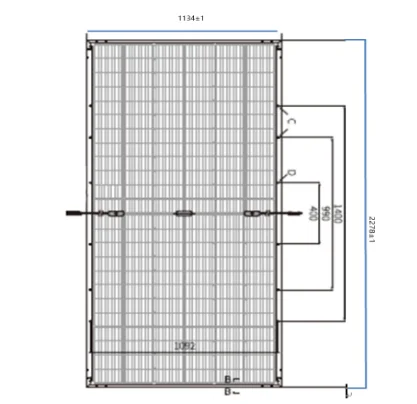

Dimension		2256x1133x35mm
Junction Box		IP68,three diodes
Output Cables		4mm2,positive 400mm /negative 200mm ,length can be customized
Glass		Dual glass,3.2mm coated tempered glass
Frame		Anodized aluminum alloy frame

Smart Solar Panel Half Cell Half Cell Solar Panel Silicon Sun Power 450W 480W 500W 550W Price PV Model Solar Panel Images
